Product Detail

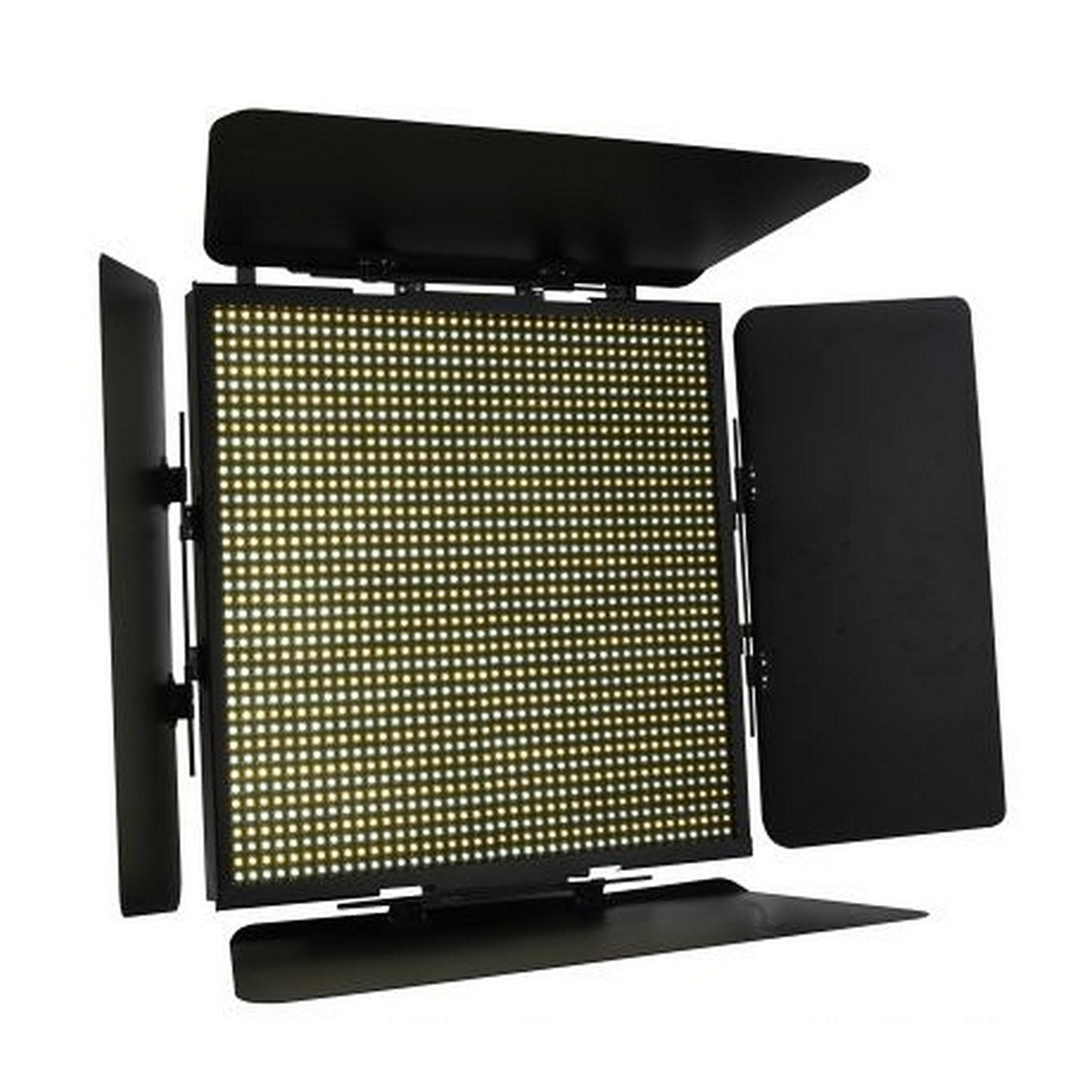

The upgraded Elation TVL4000 II is a remarkable dynamic LED array panel. It features low heat emission and a CRI of over 90, providing high - quality lighting. With 800 warm white and 800 cool white LEDs, it has a 30 - degree beam angle. You can manually or via DMX control the color temperature from 3,200K to 6,500K and adjust the dimming. The adjustable barn doors and magnetic gel/diffuser holder offer flexibility in lighting control. It operates flicker - free, ideal for broadcast TV and film. It has 3 and 5 - pin DMX in/out and power in connections, a (4) button (2) dial LCD display control panel. It consumes a maximum of 160W and has a multi - voltage universal auto - switching power supply (100 - 240v). Key features include a low - heat, >90CRI dynamic LED array, 30 - degree beam angle, variable color temperature, adjustable barn doors, magnetic gel/diffuser holder, manual and DMX control, and flicker - free operation. Technical specs show great photometric data and various control options. It comes with a 180 - degree dual/yoke bracket and power cable, and has CE, cETLus, RoHs, IP20 approvals.
Using the Elation TVL4000 II is easy. First, connect the power cable to a 100 - 240V power source. You can use the (4) button and (2) dial control panel on the device to set the color temperature and dimming level either manually or via DMX. Adjust the barn doors to control the spread of light as needed. If you want to change the lighting effect, place different gels or diffusers in the magnetic holder. When using it for broadcast TV or film, you can rest assured as it operates flicker - free. As for maintenance, keep the device clean and avoid exposing it to high - temperature environments above 40 degrees Celsius. Check the connections regularly to make sure they are secure. And always handle the device with care to avoid damage to the LEDs.
