Product Detail

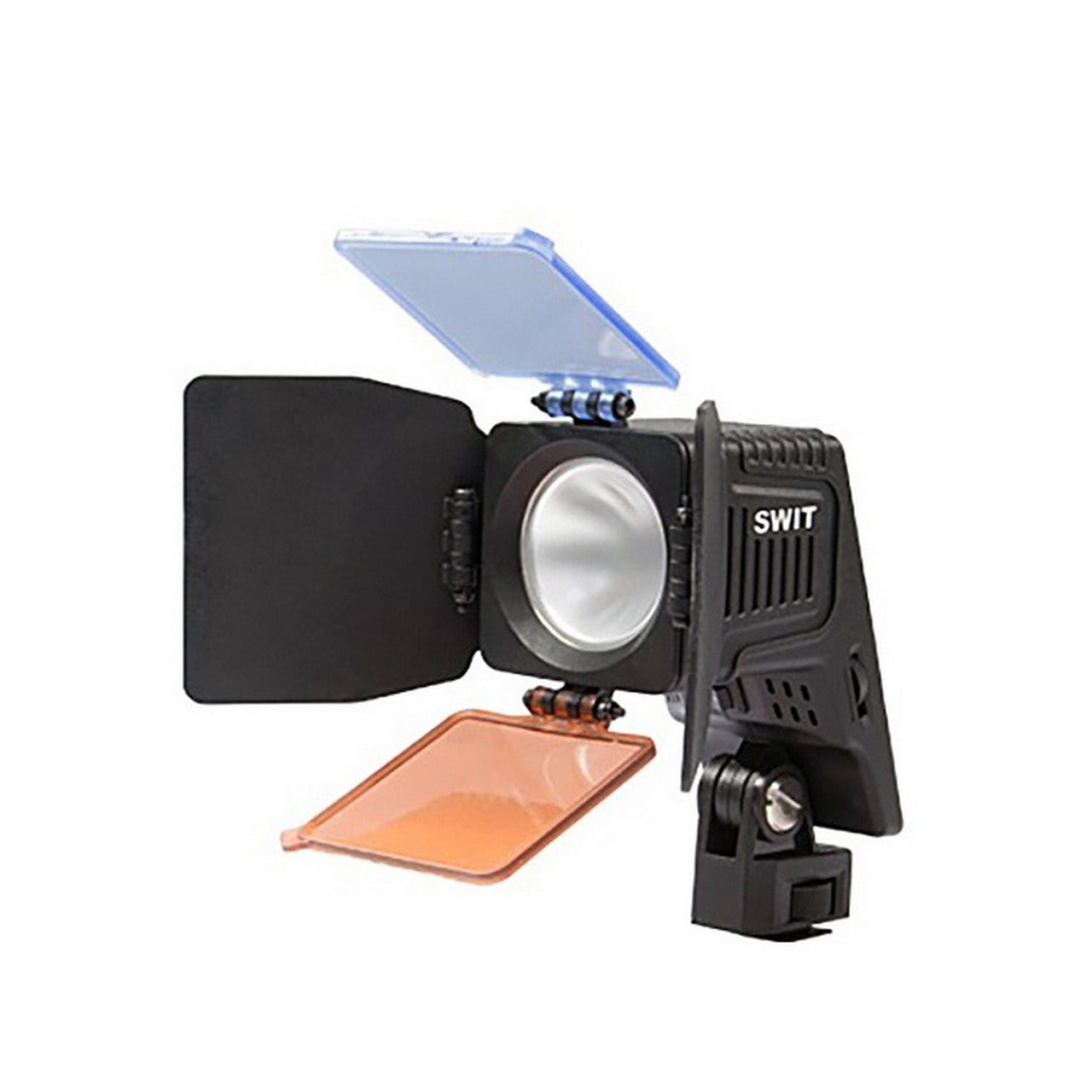

The SWIT S-2070D is an amazing on-camera lighting package. It combines the SWIT S-2070 chip array LED light with a Panasonic VW-VBD58 battery mount (S-7004D). The S-2070 light features a compact and low - power design. With a 60° wide beam angle, it provides a center illuminance of 1300Lux at a 1 - meter distance. You can easily adjust the brightness using the built - in dimmer. The light has a default color temperature of 5000K, and you can switch it from 3200K to 5600K with the attached filter and diffuser. It can be powered by a snap - on DV battery plate or a pole DC connector, accepting a wide voltage input of 6 - 17V. Key features include Chip Array LED technology for single - shadow and glareless lighting. It has 13W power consumption but offers an equivalent output of 70W. The light is dimmable, has an even 60° wide beam spread, and stays cool to the touch. It has a color rendering index of 85, and its housing is made of strong and durable glass fiber. There's also an integrated cold shoe with a 1/4' thread inside. Technical specifications: Input voltage is DC 6V - 17V, power consumption is 13W, halogen equivalent is 70W, beam angle is H60/V60, color temperature is switchable between 5000K, 5600K, and 3200K, color rendering index is 85, illuminance is 800Lx at 1m distance and 1m diameter scale, power connector options are a pole DC connector or a snap - on Panasonic VW-VBD58 battery mount, working temperature ranges from - 10 to +40°C, storage temperature is from - 20 to +55°C, weight is 0.6 Lbs / 274g, and dimensions are 4.3x3.1x5.2 inches/108x80x133mm.
Using the SWIT S-2070D is easy. First, choose your power source. You can either attach a Panasonic VW-VBD58 battery using the snap - on mount or connect a power supply through the pole DC connector. Make sure the input voltage is between 6V and 17V. Once powered on, you can adjust the brightness according to your needs using the dimmer. If you want to change the color temperature, use the attached filter and diffuser to switch between 3200K, 5000K, and 5600K. When using the light, keep it within the working temperature range of - 10 to +40°C. For storage, make sure the temperature is between - 20 and +55°C. To maintain the light, clean the housing regularly with a soft, dry cloth. Avoid using harsh chemicals as they may damage the glass fiber housing. If the light is not working properly, check the power connection and the battery (if applicable). That's it! With these simple steps, you can enjoy great lighting for your camera work.
